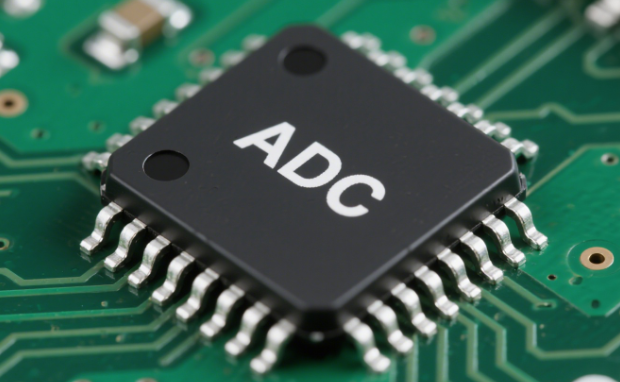

An Analog-to-Digital Converter (ADC) is a critical electronic component that transforms continuous analog signals—such as sound, light, temperature, or voltage—into discrete digital data (binary code) readable by microprocessors, computers, and digital systems. This conversion enables precise processing, storage, and transmission of real-world signals in digital devices, making ADCs indispensable in modern technology.
How ADCs Work
ADC operation involves two main steps: sampling and quantization.
Sampling: Captures the amplitude of the analog signal at regular intervals, converting the continuous waveform into a series of discrete points. The sampling rate (e.g., kilohertz or megahertz) must follow the Nyquist theorem—at least twice the highest frequency of the input signal—to avoid distortion.
Quantization: Assigns a digital value (binary number) to each sampled point, rounding the analog amplitude to the nearest available digital level. The number of bits (e.g., 8-bit, 16-bit, 24-bit) determines precision: higher bit rates reduce errors but increase processing demands.
Key ADC Types
Successive Approximation Register (SAR) ADC: Balances speed and precision, ideal for low-to-moderate sampling rates (e.g., sensors, data acquisition).
Delta-Sigma ADC: Uses high oversampling and noise shaping for high resolution, common in audio equipment and medical devices.
Flash ADC: Offers ultra-fast conversion (nanosecond range) but consumes more power, used in radar and high-speed communication.
Pipeline ADC: Splits conversion into stages for high speed and resolution, suitable for video processing and 5G systems.
Critical Performance Metrics
Resolution (Bits): Higher bits (e.g., 24-bit) capture finer signal details, essential for audio or medical imaging.
Sampling Rate: Measured in samples per second (SPS); higher rates handle faster-changing signals (e.g., 1 GSPS for oscilloscopes).
Signal-to-Noise Ratio (SNR): Indicates noise interference; higher SNR ensures cleaner digital output.
Power Consumption: Critical for battery-powered devices (e.g., wearables) where efficiency is key.
Applications Across Industries
Consumer Electronics: ADCs in smartphones convert microphone audio, camera light, and touchscreen signals into digital data.
Industrial Automation: Monitor sensors (temperature, pressure) in manufacturing lines, enabling real-time digital control.
Medical Devices: Convert signals from ECG machines, MRI scanners, and blood pressure monitors for accurate diagnostics.
Telecommunications: Facilitate analog-to-digital conversion in 5G base stations and fiber-optic networks for high-speed data transmission.
Automotive Systems: Power ADAS (Advanced Driver-Assistance Systems) by processing radar/lidar signals and battery monitoring data.
Choosing the Right ADC
Selecting an ADC depends on application needs: high-resolution ADCs suit audio equipment, while high-speed models are better for radar systems. Factors like power efficiency, cost, and integration with microcontrollers also play a role.
ADC technology continues to advance, with newer models offering higher resolution, faster sampling, and lower power consumption—driving innovation in IoT devices, renewable energy systems, and artificial intelligence applications. As digital transformation accelerates, ADCs remain foundational to bridging the analog and digital worlds.
